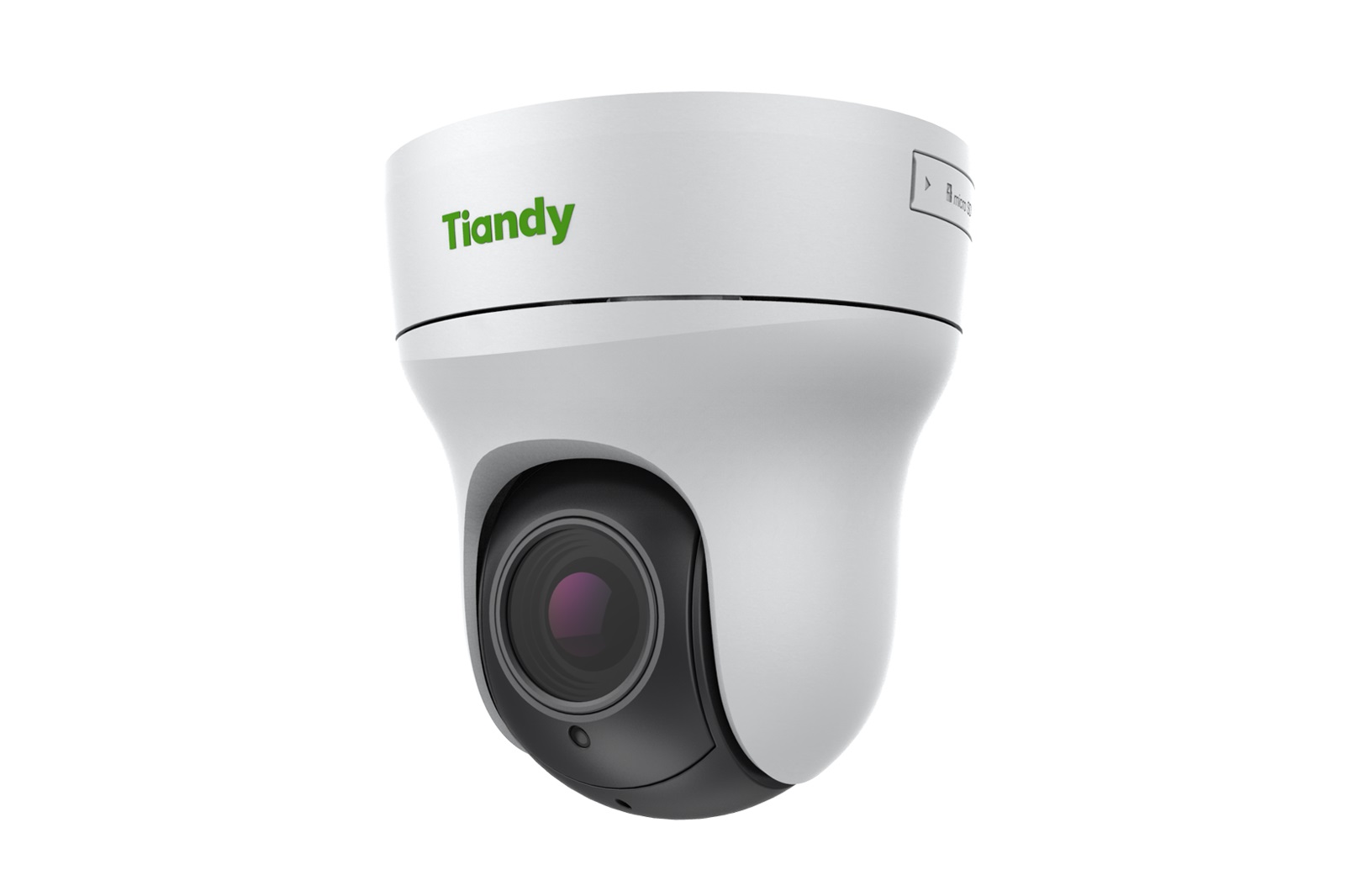

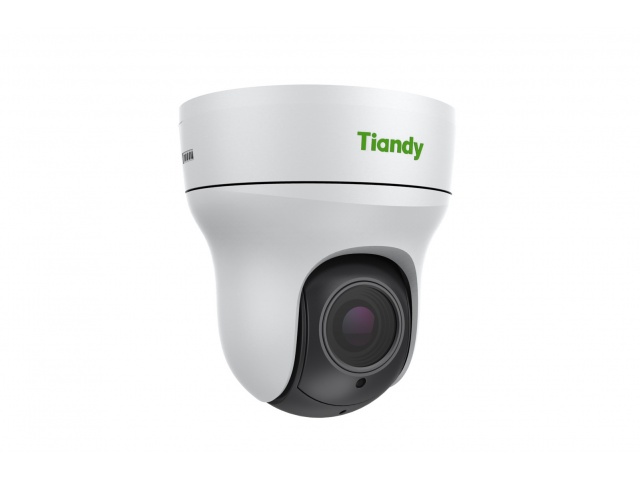

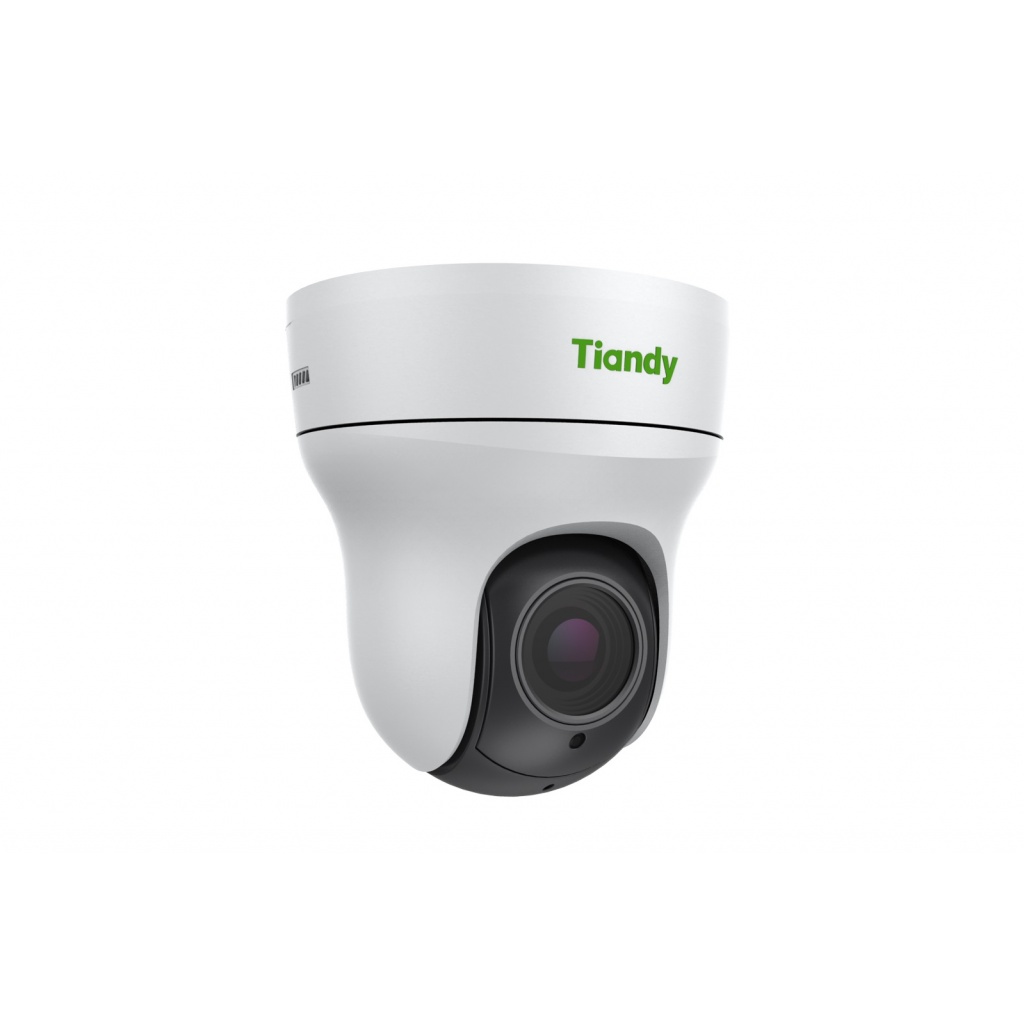

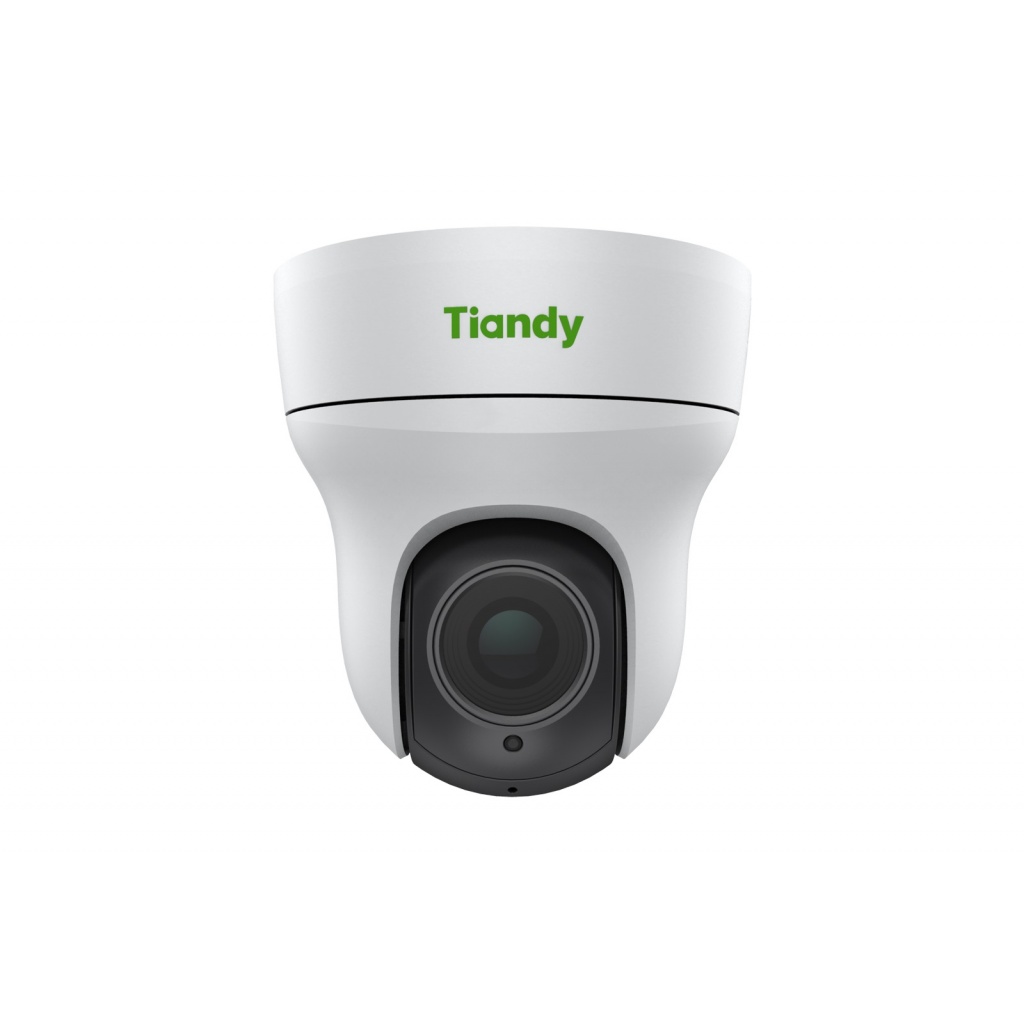

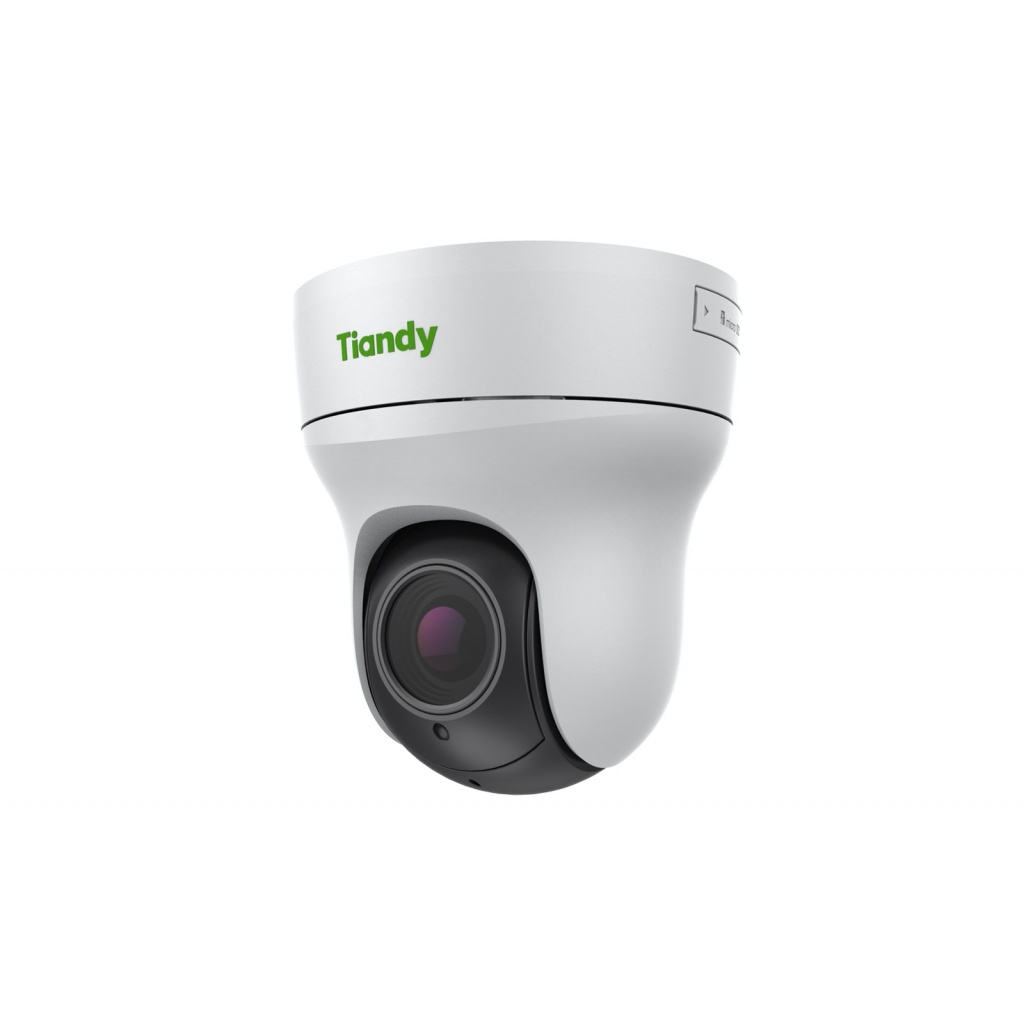

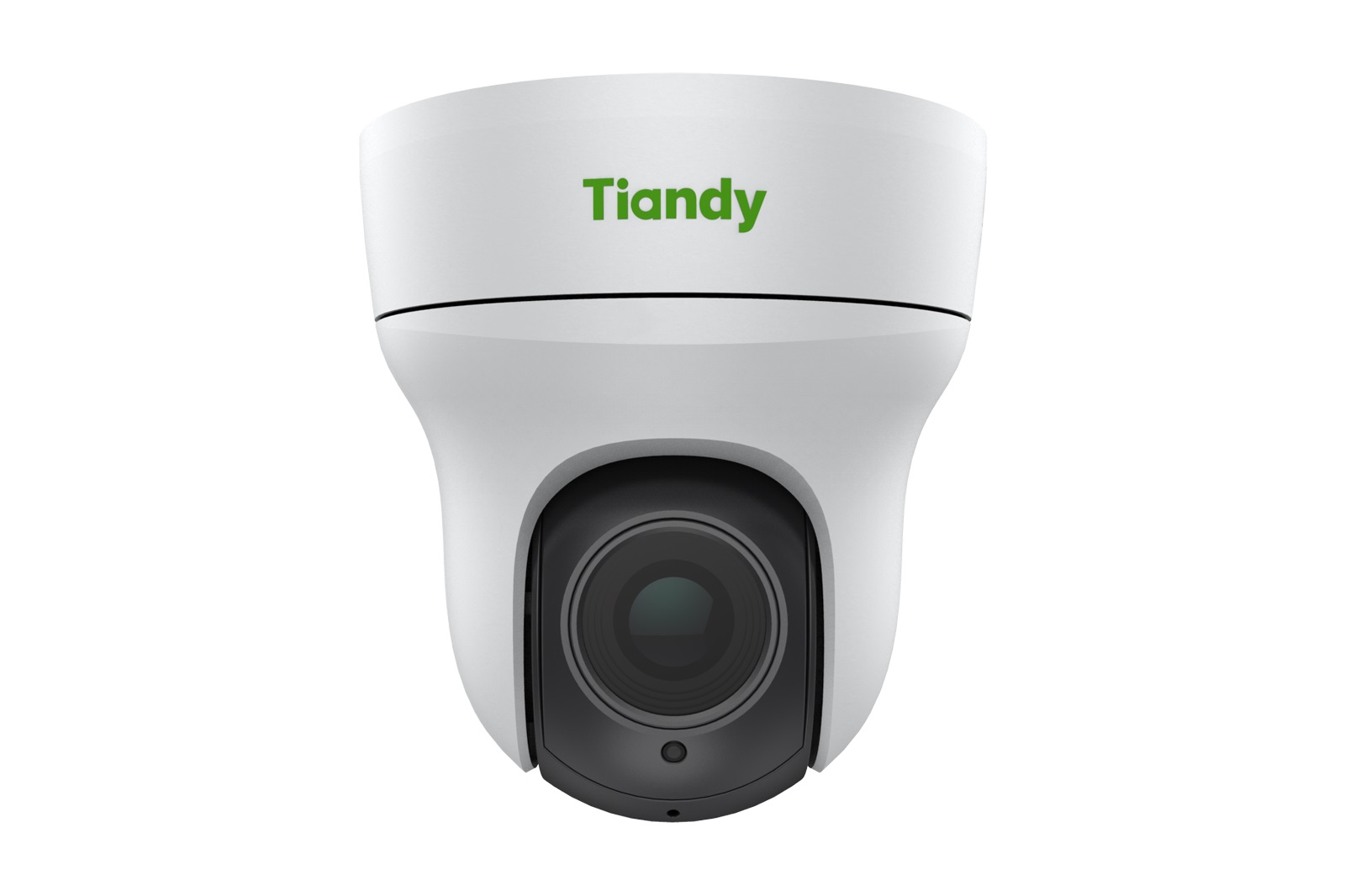

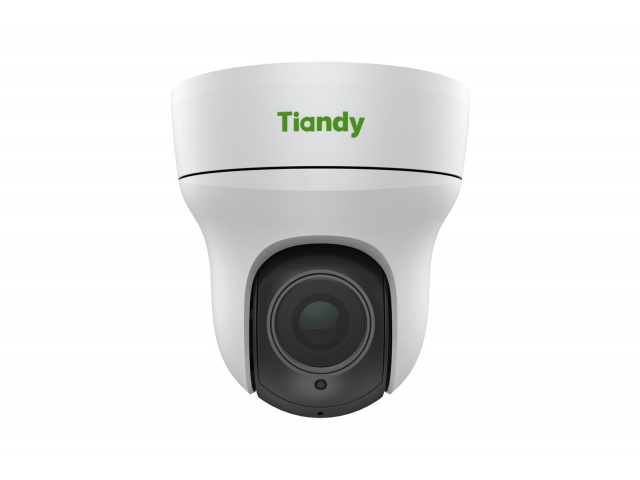

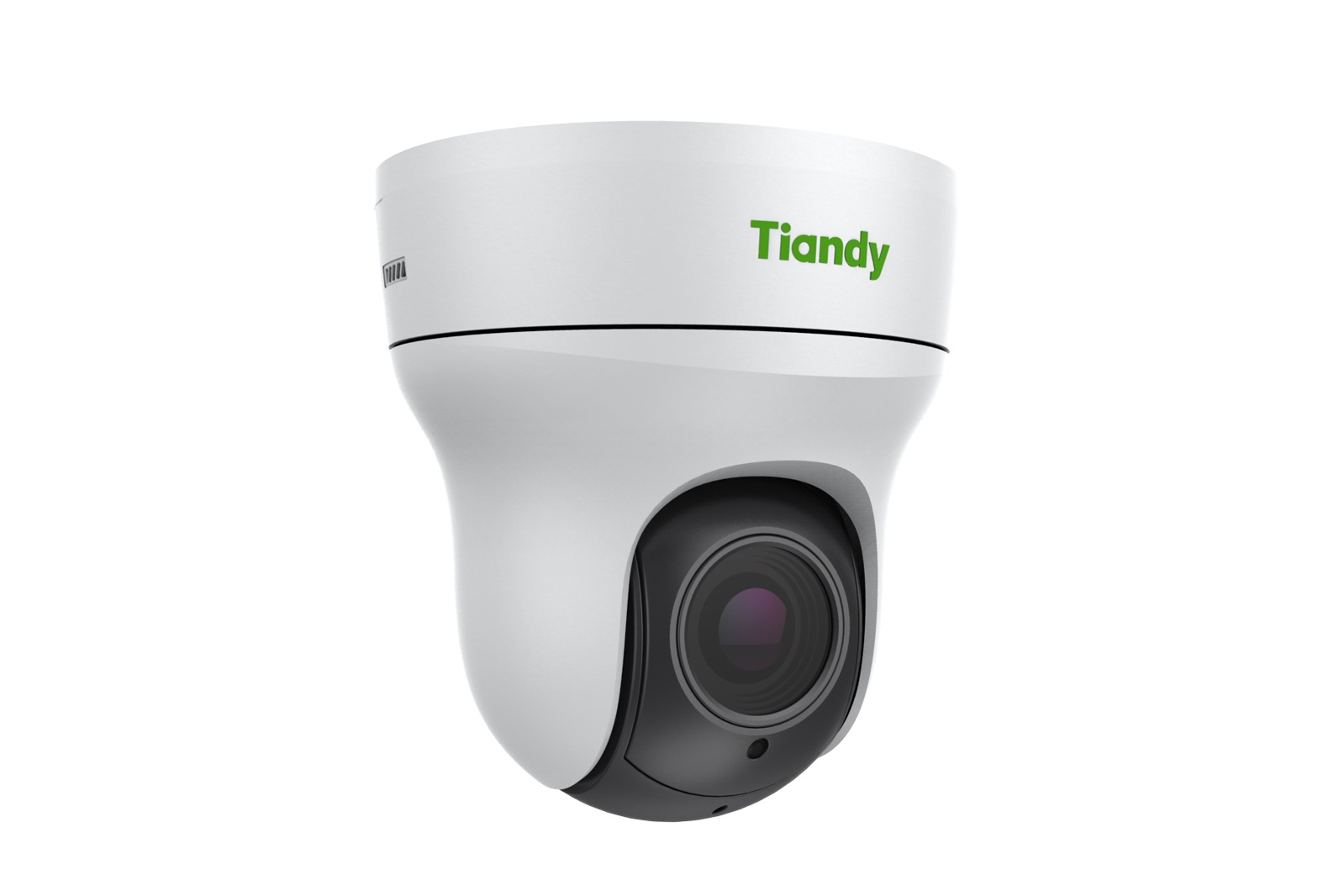

CAMARA IP TIANDY 2MP PTZ 4X MINI EW STARLIGHT

SPECIFICATIONS








CAMERA








Image Sensor: 1/2.8" CMOS








Signal System: PAL/NTSC








Min. Illumination: Color: 0.002lux@ (F1.4, ACG ON), BW: 0lux with IR








Shutter Time: 1s to 1/100,000s








Day & Night: Dual IR Cut Filter








Wide Dynamic Range: 120dB








Optical Zoom: 4×








Digital Zoom: 16×








LENS








Focal Length: 2.8mm~12mm








Zoom Speed: <5s








Angle of View: Horizontal filed of view: 104º (w)~30º (t)








Aperture Range: F1.4~F2.8








PAN&TILT








Pan Range: 350º








Pan Speed: Pan Manual Speed: 0.1º~60º/s, Pan Preset Speed: 60º/s








Tilt Range: 0º~90º (Auto flip)








Tilt Speed: Tilt Manual Speed: 0.1º~60º/s, Tilt Preset Speed: 60º/s








3D Position: Yes








Presets: 500








Preset Accuracy: ±0.6º








Scan: 8








Cruise: 16, up to 32 presets per cruise








Pattern: 8, each with 600s memory or 1000 orders








Power-off Memory: Yes








RS-485 Protocols: DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS








ILLUMINATOR








IR LEDs: 3








IR Range: Up to 30m








IR Irradiation Angle: Fixed








White LEDs: 1








COMPRESSION STANDARD








Video Compression: S+265/H.265/H.264/M-JPEG








Video Bit Rate: 32 Kbps to 16 Mbps








Audio Compression: G.711A/G.711U/ADPCM/AAC








Audio Bit Rate: 8K~48Kbps
















Max. Resolution: 1920×1080








Main Stream:








PAL: 25fps (1920×1080, 1280×960), 50fps (1280×720)








NTSC: 30fps (1920×1080, 1280×960), 60fps (1280×720)








Sub Stream:








PAL: 25fps (704×576, 704×288, 352×288)








NTSC: 30fps (704×480, 704×240, 352×240)








Third Stream: PAL: 25fps (352×288) NTSC: 30fps (352×240)








Image Setting: Saturation, brightness, contrast, sharpness, adjustable by client software or web browser








Image Enhancement: BLC/3D DNR/HLC








ROI: 7 Dynamic Areas for Both Main and Sub Stream








OSD: 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions








Picture Overlay: Yes








Privace Mask: Yes








Smart Defog: Yes








FEATURE








Alarm Trigger: Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection








Video Analytics: Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Face Detection, Crowed, Video Abnormal, Audio Abnormal, Heatmap








Early Warning(EW): Yes








Auto-Tracking: N/A








NETWORK








Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE








System Compatibility: ONVIF (PROFILE S), SDK, CGI, P2P








ANR: Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)








Remote Connection: <=7








Client: Easy7, EasyLive








Web Version: Web5








INTERFACE








Communication Interface: 1 RJ45 10M/100M self adaptive Ethernet port








Audio: 1/1, Mic in








Alarm: 2/1








Reset Button: Yes








On-board storage: Built-in MicroSD card slot, up to 128 GB








RS-485: Yes








BNC: N/A








GENERAL








Firmware Version: NVSS_14.1.3 20180918








Web Client Language: 11 languages - English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish








Operating Conditions: -10ºC~50ºC, 0-90% RH








Power Supply: DC 12V±10%/POE








Power Consumption: 4.9W (IR OFF), 8.9W (IR ON)








Protection: IP40








Heater: N/A








Dimensions: 141x152 mm (5.55×5.98 inch)








Weight: 0.85kg (1.87lb)








(*) Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at








the same time.
