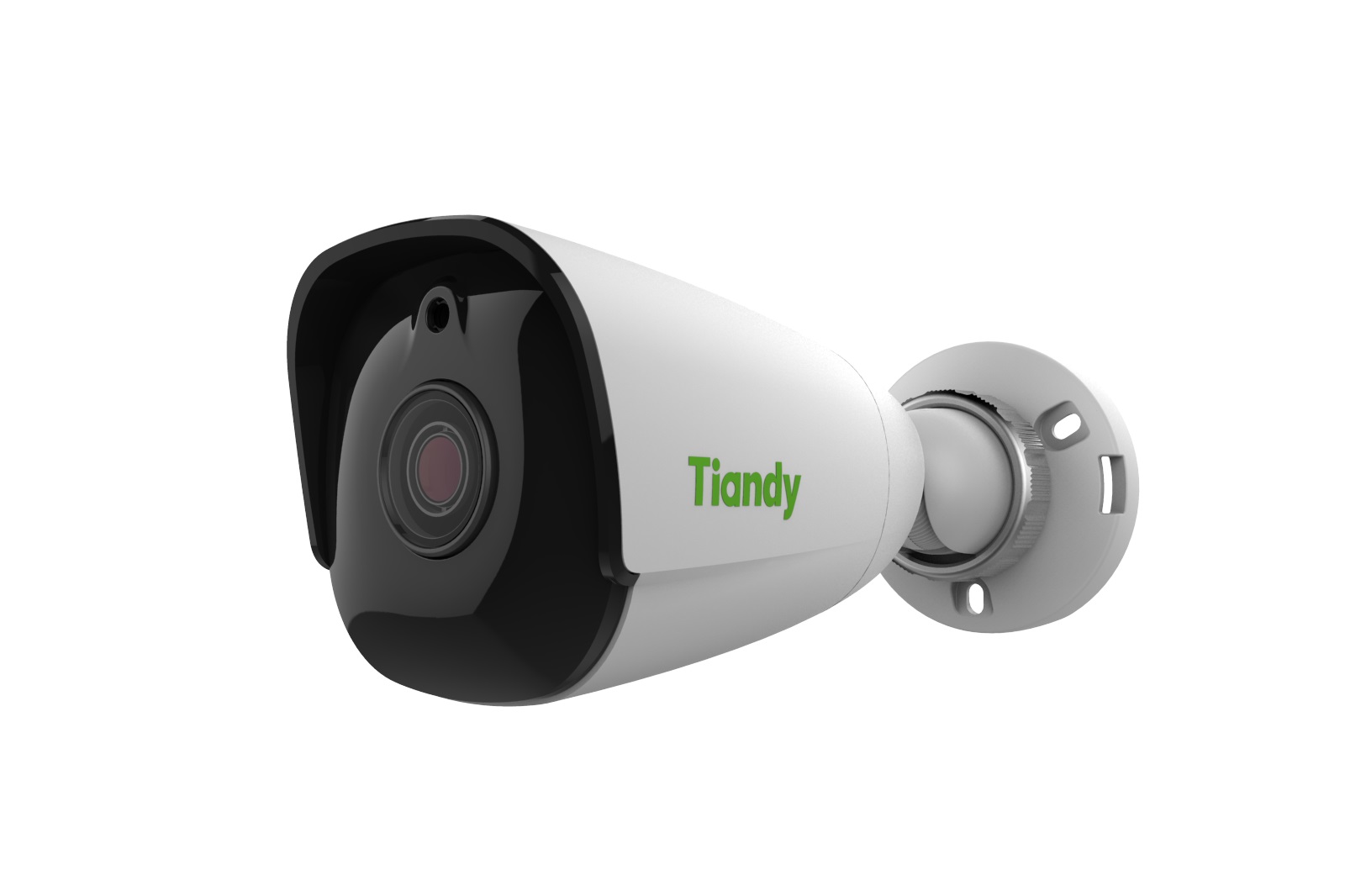

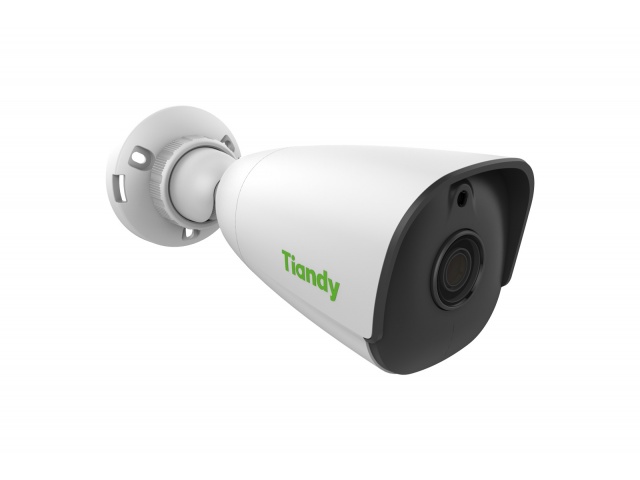

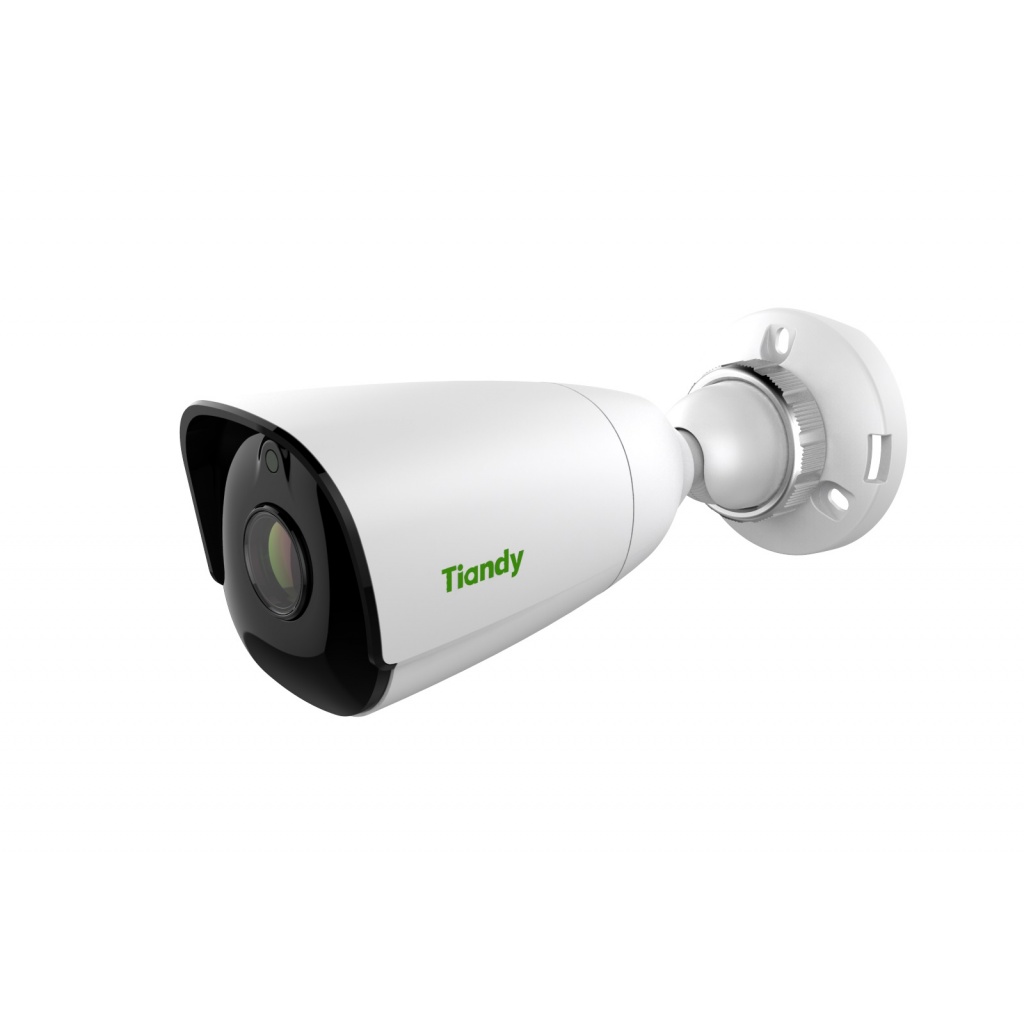

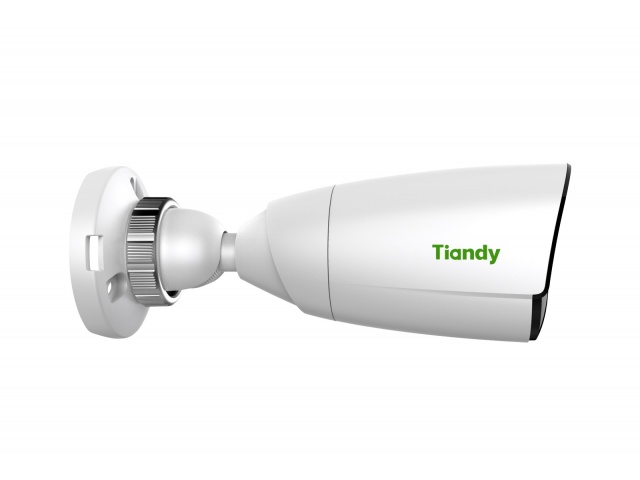

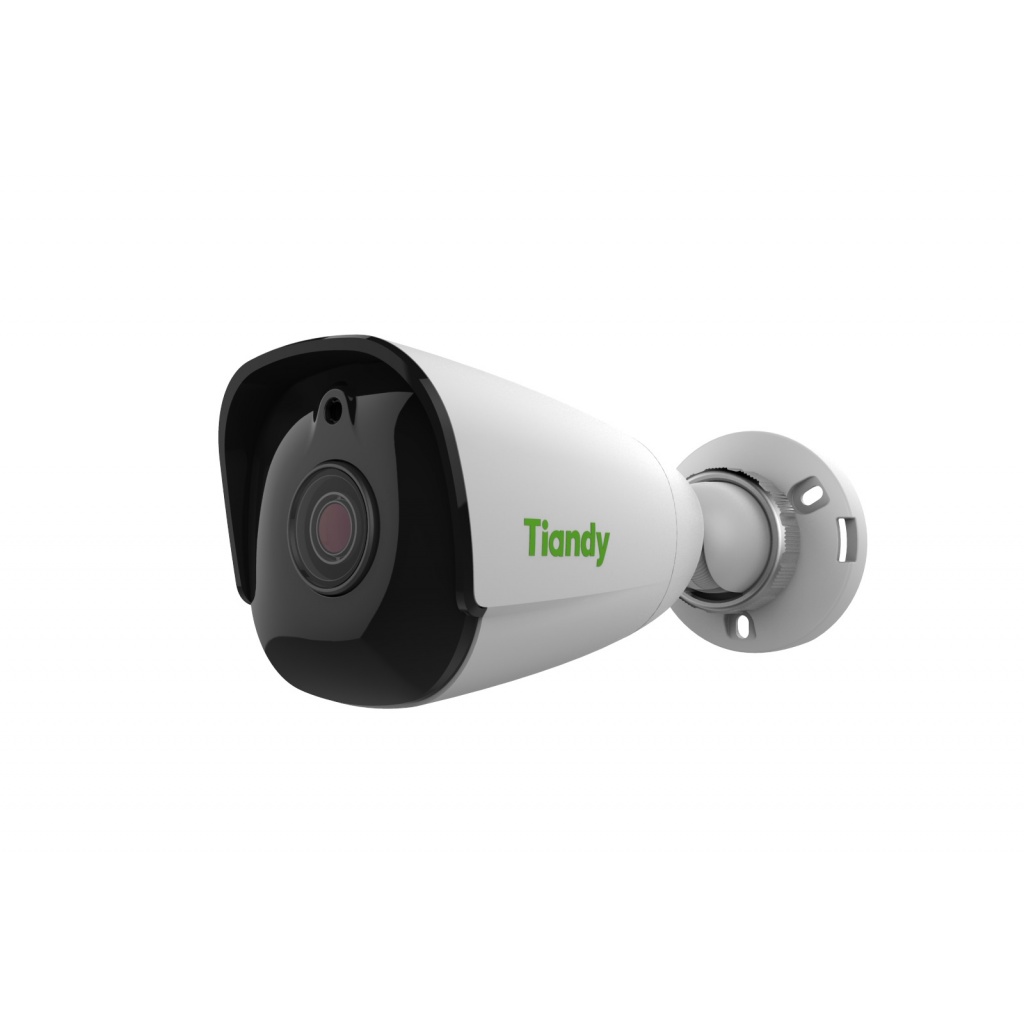

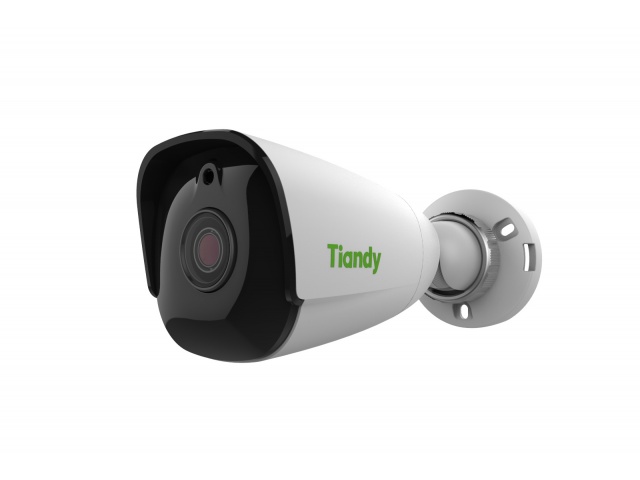

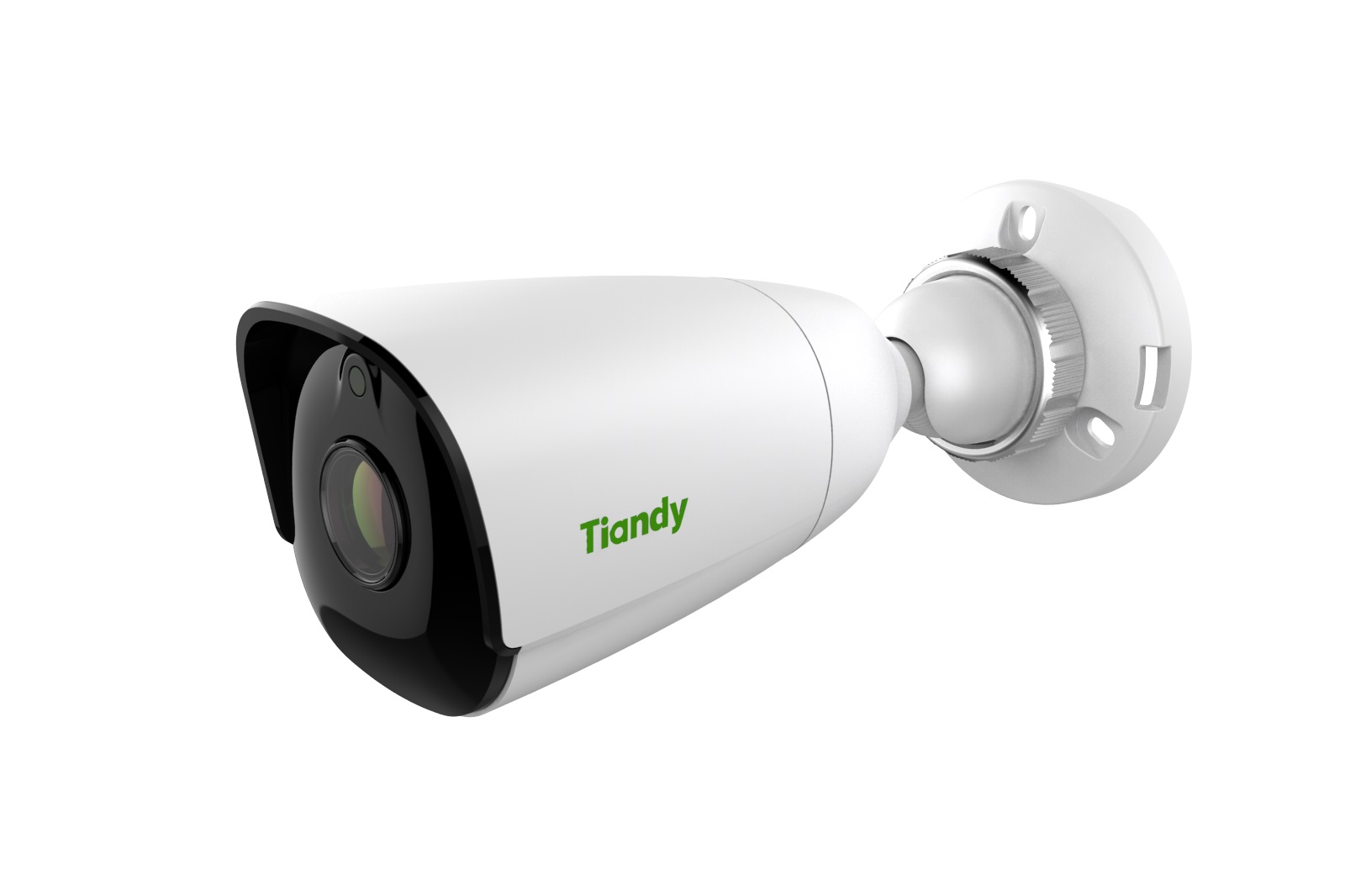

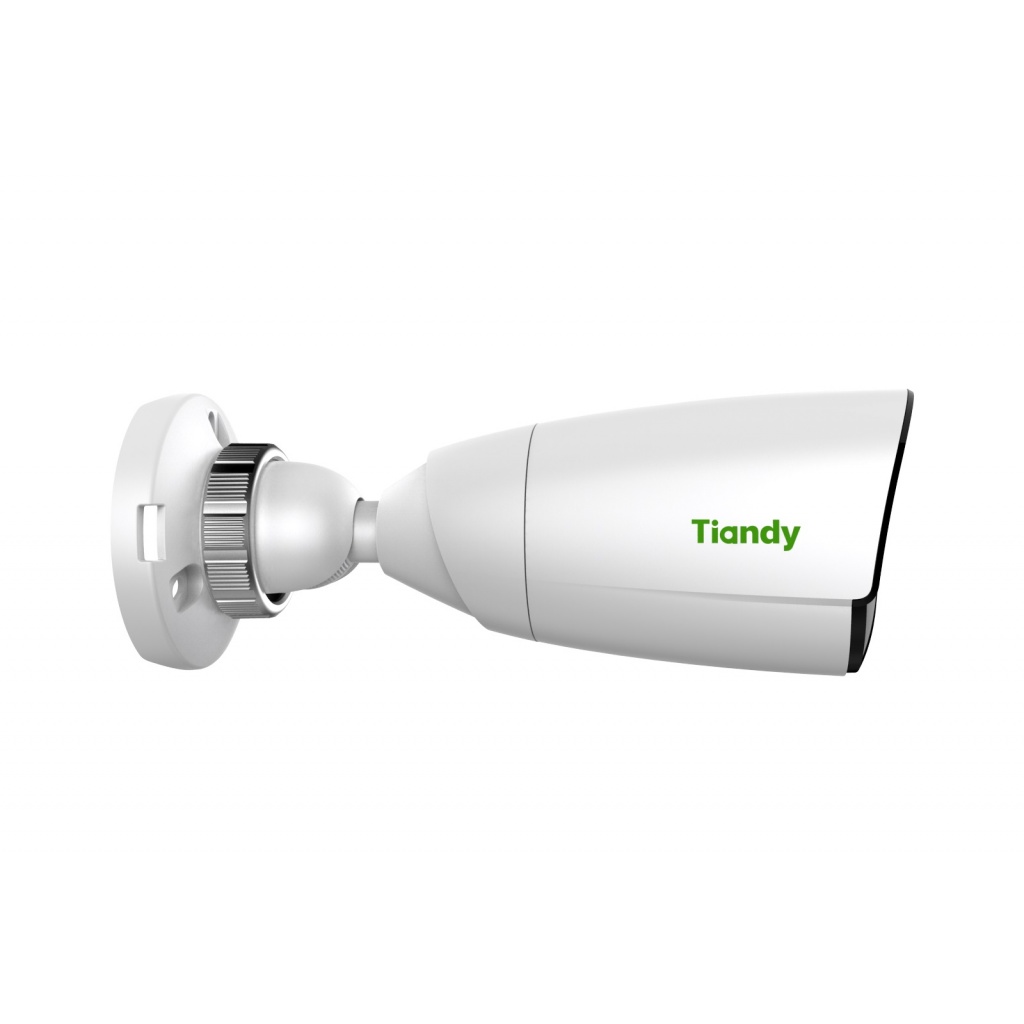

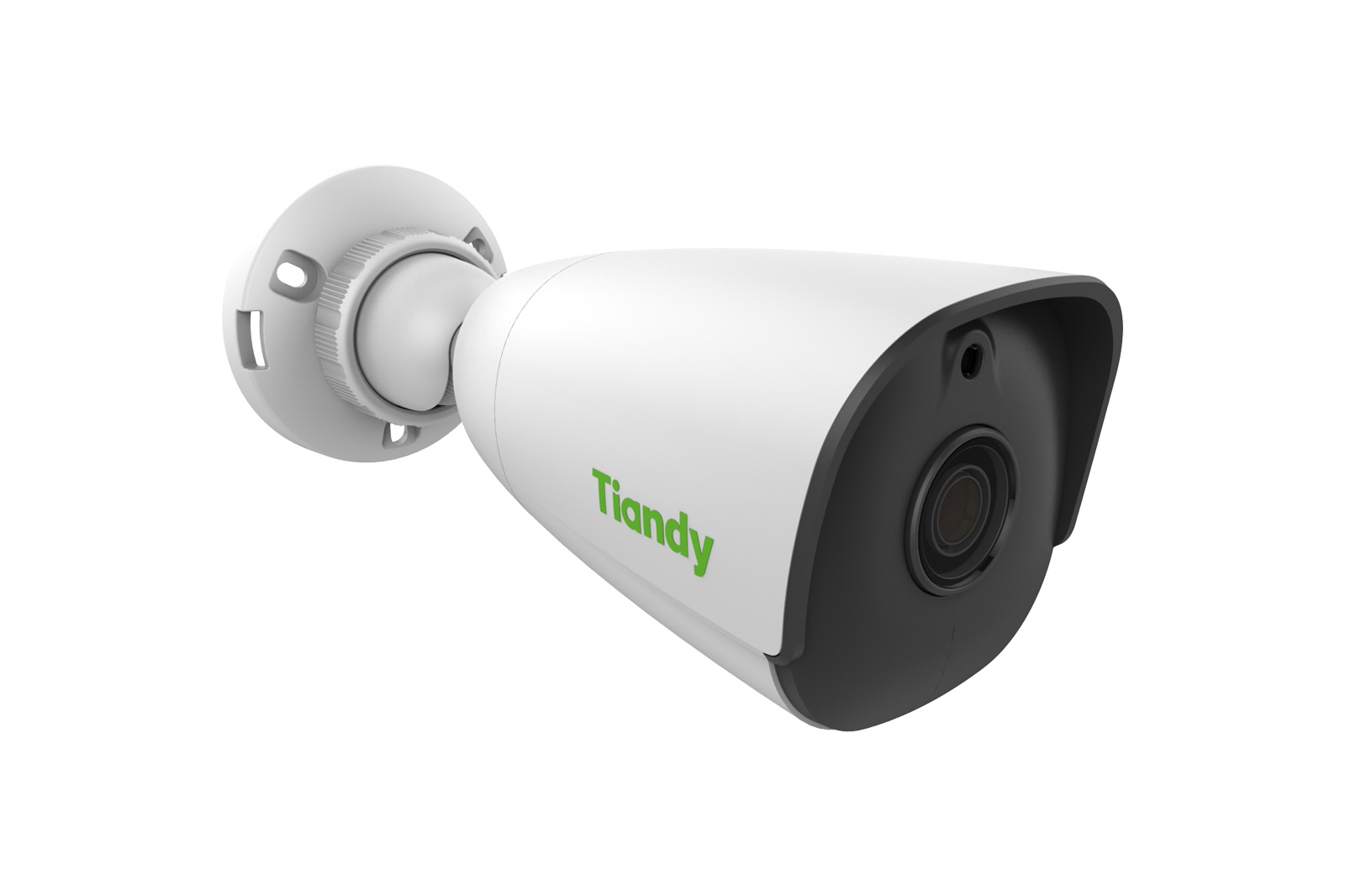

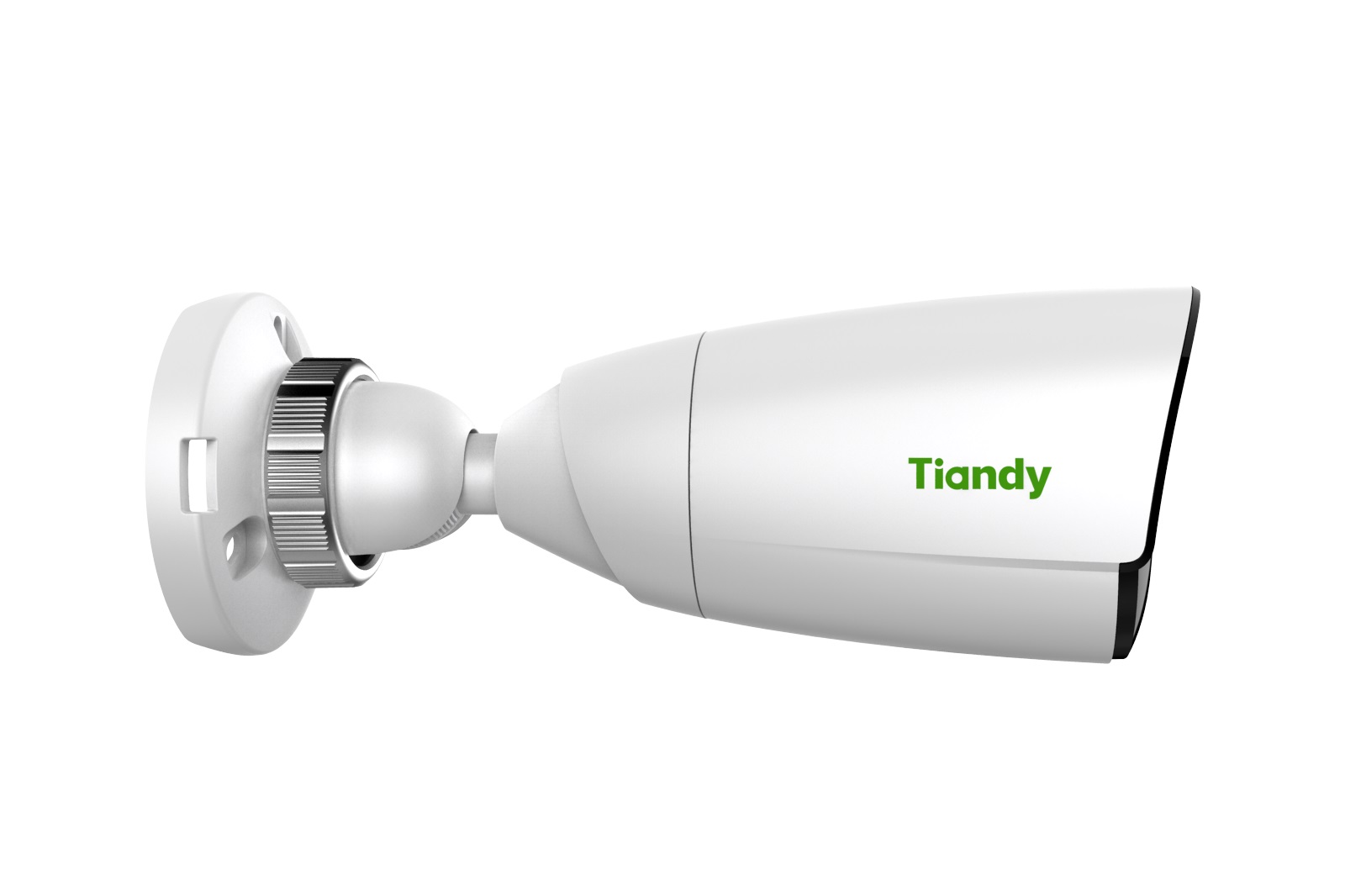

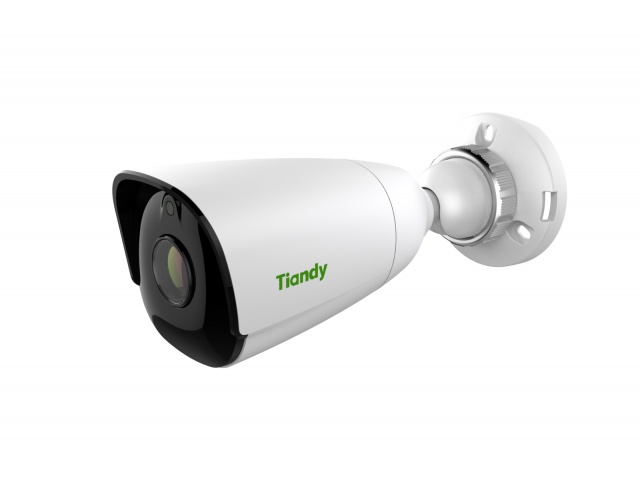

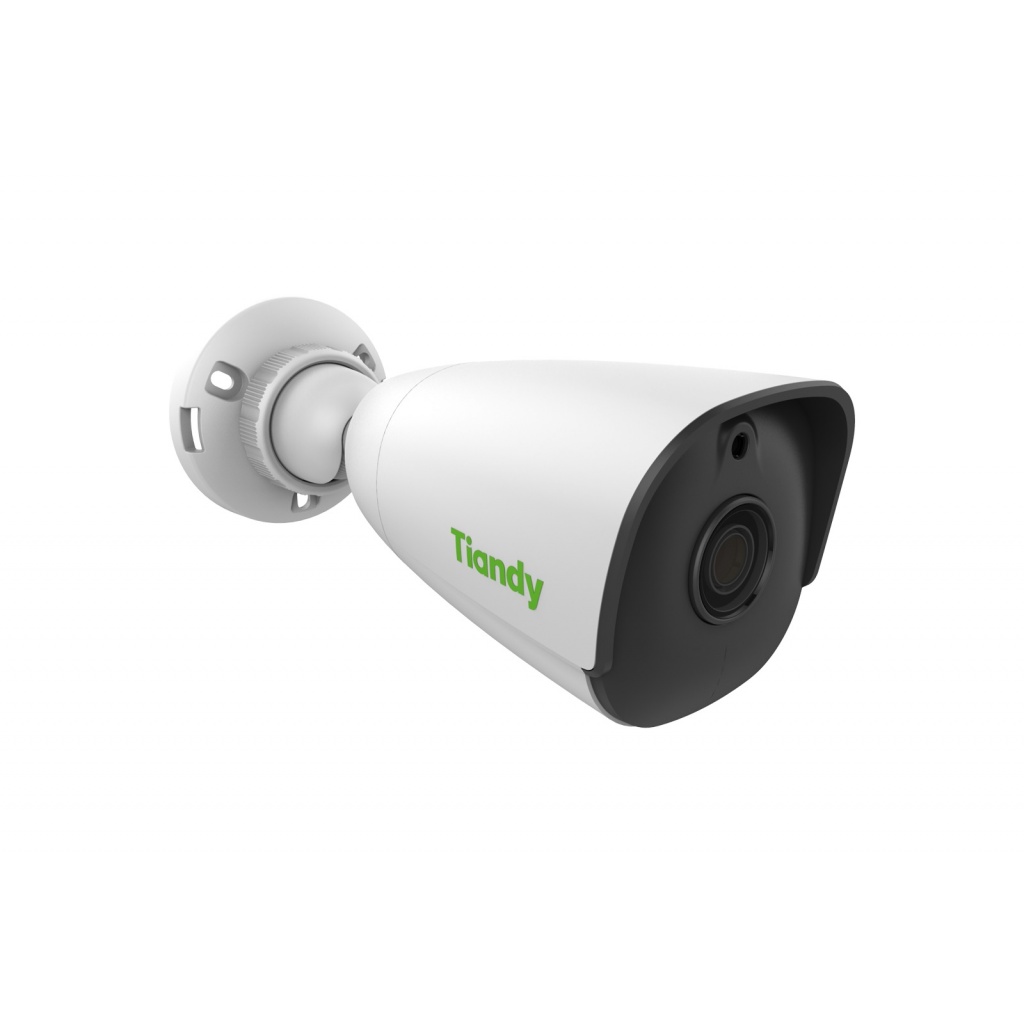

CAMARA IP TIANDY 2MP BULLET SUPER STARLIGHT

SPECIFICATIONS








CAMERA








Image Sensor: 1/2.8" CMOS








Signal System: PAL/NTSC








Min. Illumination: Color: 0.0008Lux@ (F1.6, ACG ON), B/W: 0Lux with IR








Shutter Time: 1s to 1/100,000s








Day & Night: Dual IR Cut Filter with Auto Switch








Wide Dynamic Range: Digital WDR








Angle Adjustment: Bracket, pan 0~360°, tilt 0~75°, roate 0~360°








LENS








Lens Type: Fixed








Focus: 4mm








Lens Mount: M12








Aperture: F1.6, Fixed








FOV: Horizontal field of view: 87.6°








ILLUMINATOR








IR LEDs: 2








IR Range: Up to 50m








Wavelength: 850nm








White LEDs: N/A








COMPRESSION STANDARD








Video Compression: S+265/H.265/H.264








Video Bit Rate: 32 Kbps to 6 Mbps








Audio Compression: N/A








Audio Bit Rate: N/A
















Max. Resolution: 1920×1080








Main Stream








PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)








NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)








Sub Stream








PAL: 25fps (704×576, 704×288, 640×360, 352×288)








NTSC: 30fps (704×480, 704×240, 640×360, 352×240)








Third Stream: N/A








Image Setting: Saturation, brightness, contrast, sharpness, adjustable by client software or web








browser








Image Enhancement: BLC/3D DNR/HLC








ROI: N/A








OSD: 16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 1 Regions








Picture Overlay: N/A








Privace Mask: Yes








Smart Defog: Yes








FEATURE








Alarm Trigger: Motion Detection/IP Conflict/MAC Conflict/Mask Alarm








Video Analytics: N/A








Early Warning(EW): N/A








Intelligent Coding: Yes








Intelligent Image: Yes








Intelligent Alarm: Yes








NETWORK








Network Storage: N/A








Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP,








RTSP, SMTP








IGMP, QoS








System Compatibility: ONVIF (PROFILE S), SDK, P2P








Remote Connection =7








Client: Easy7, EasyLive








Web Version: Web5








INTERFACE








Communication Interface: 1 RJ45 10M/ 100M self adaptive Ethernet port








Audio I/O: N/A








Alarm I/O: N/A








Reset Button: N/A








On-board storage: N/A








GENERAL








Firmware Version: NVSS_V13.2.1.20190612








Web Client Language: (11 languages) - English, Russian, Spanish, Korean, Italian, Turkish, Simple








Chinese, Traditional Chinese, Thai,








French, Polish








Operating Conditions: -35°C~65°C, 0~95% RH








Power Supply: DC 12V±20%, PoE (802.3af)








Power Consumption: MAX: 6W(12V) MAX: 7W(POE)








Protection: IP67








Heater: N/A








Dimensions: 189×70×70 mm (7.44×2.76×2.76 inch)








Weight: 0.5kg (1.1lb)








(*) Listed resolutions are only selectable options. It does not mean that all streams can work at their








maximum resolution at








the same time.
