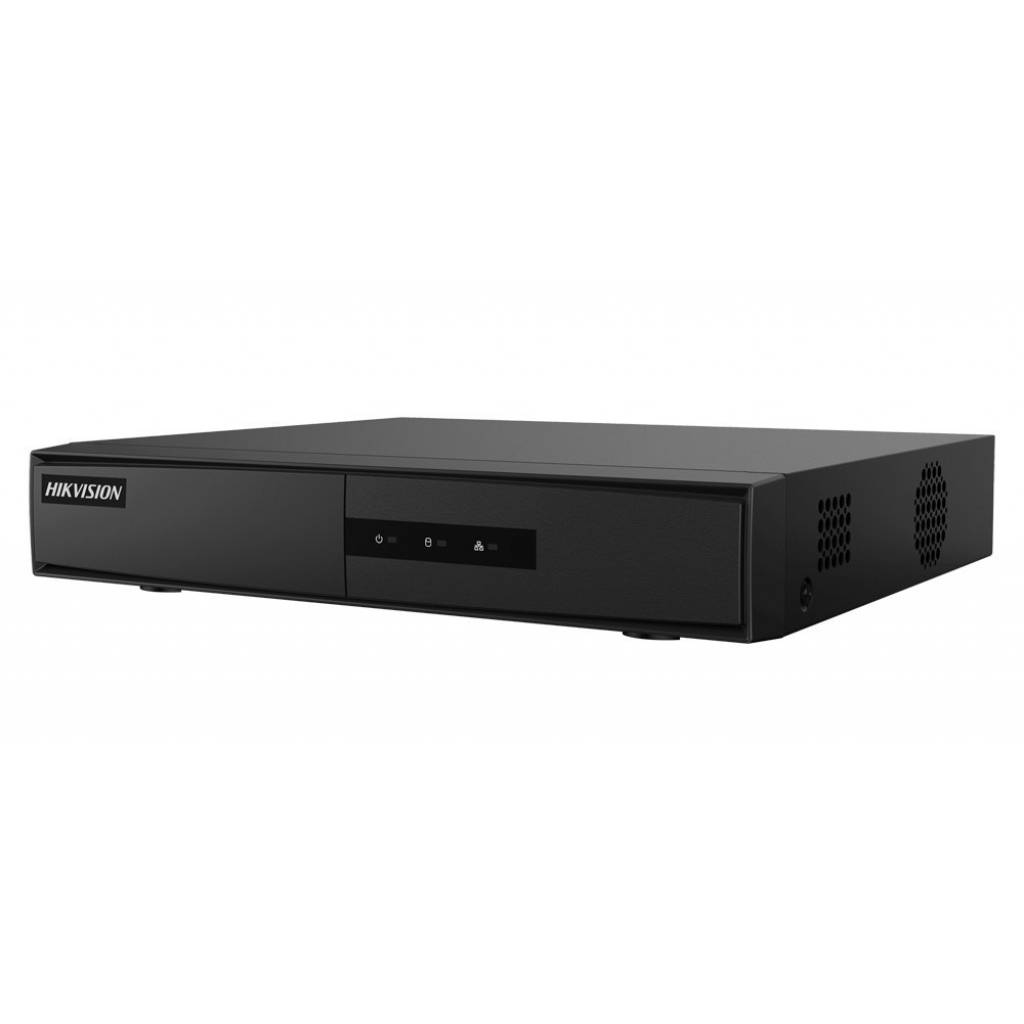

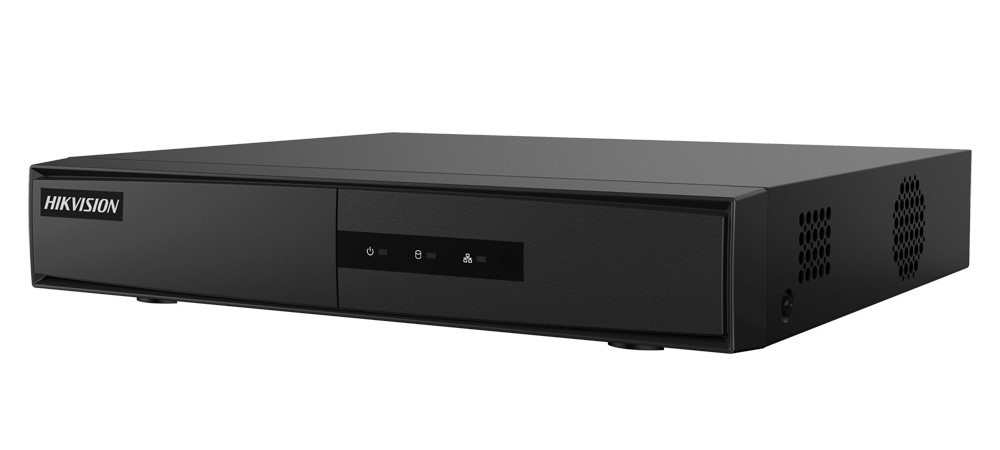

DVR 4 CANALES HIKVISION 1080P LITE DS-7204HGHI-M1

Motion Detection 2.0


Human/Vehicle Analysis





Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;





Quick search by object or event type is supported;





Recording


Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264


Encoding Resolution





For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF





For 720p stream access: 720p/WD1/4CIF/VGA/CIF





For SD stream access: WD1/4CIF/VGA/CIF


Frame Rate





Main stream:





For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)





For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)





For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)





Sub-stream:





4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)


Video Bitrate32 Kbps to 4 Mbps


Stream TypeVideo, Video & Audio


Audio CompressionG.711u


Audio Bitrate64 Kbps





Video and Audio


IP Video Input





1-ch (up to 5-ch)





Up to 1080p resolution





Support H.265+/H.265/H.264+/H.264 IP cameras


Analog Video Input





4-ch





BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection


HDMI Output





1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz








VGA Output





1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz








CVBS InputSupport


HDTVI Input1080p25, 1080p30, 720p25, 720p30


Synchronous playback4-ch


AHD Input1080p25, 1080p30, 720p25, 720p30


HDCVI Input1080p25, 1080p30, 720p25, 720p30


Video Output ModeHDMI/VGA simultaneous output


Audio Output1-ch, RCA (Linear, 1 KO)


Audio Input





1-ch RCA (2.0 Vp-p, 1 KO)





4-ch via coaxial cable


Two-Way AudioReuse the first audio input





Network


Total Bandwidth64 Mbps


Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS


Remote Connection32


Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface





Auxiliary Interface


SATA1 SATA interface


CapacityUp to 4 TB capacity for each disk


USB InterfaceRear panel: 2 × USB 2.0


Alarm In/OutN/A





General


Power Supply12 VDC, 1.5 A


Consumption= 16 W (without HDD)


Working Temperature-10 °C to 55 °C (14 °F to +31 °F)


Working Humidity10% to 90%


Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)


Weight= 0.8 kg (without HDD, 1.8 lb.)
